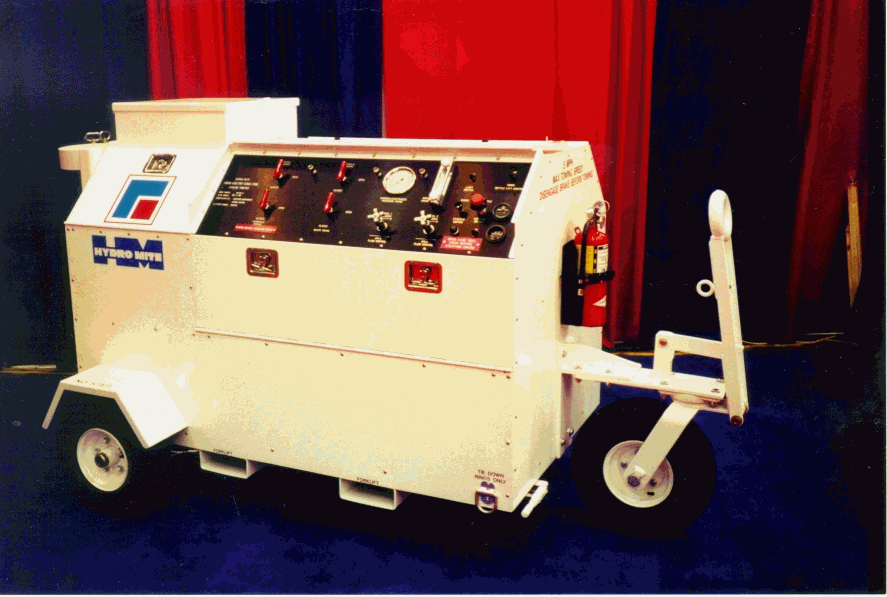

The Hydro Mite Landing Gear Strut Service Stand
is designed to service aircraft oleo-pneumatic landing gear shock struts at all maintenance levels with
filtered hydraulic oil and nitrogen. The stand is a self-contained, portable, hydraulic pumping unit which
will accurately service aircraft landing gear shock struts with fresh oil and nitrogen in minutes, ensuring
rapid aircraft turnaround. The system includes a gasoline, diesel, propane,
or electric driven high pressure pump with pressure compensator,
micron filters, one forty-gallon fresh oil tank, one forty-gallon waste oil
tank, and forty feet of high pressure hose on each retractable hose reel. Control of flow to and from the
strut is achieved through the use of valves on the instrument panel. The system is housed within a weather-resistant
steel cabinet mounted on a pneumatic tire trailer assembly finished in white paint and black anodized instrument panel.
Instruments and controls are permanently nameplated to identify their function. Hinged doors provide quick access for
routine inspection, maintenance, and service. A heavy duty towbar with lunette eye and steerable front
wheel make the unit highly maneuverable and facilitates towing speeds up to twenty miles-per-hour.
Hand-operated parking brakes are provided.
LANDING GEAR STRUT SERVICE STAND Model: HM-GT1-C
LEADING PARTICULARS
SERVICE MEDIUM
|
-
MIL-H-5606 Oil or Equivalent
MIL-H-83282 Oil or Equivalent
|
INSTRUMENTATION
|
-
Pressure Gauge: WIKA
|
|
Liquid
Filled - 4 inch
|
|
0-5000 PSI Range
|
Fluid Sight Gauge: Hydro Craft
|
| Pyrex Glass Tube
|
Volt Meter: S.S. White
|
|
10 Volts to 16 Volts
|
Hour Indicator: Hobbs
|
|
Vibration Dampered
|
|
0-9999 Hours
|
MAJOR COMPONENTS
|
Power Unit:
|
Gasoline Model: Robin
|
- Air-cooled two-cylinder,
| | four-cycle engine, Model EH65
|
Diesel Model: HATZ
|
| Air-cooled, one-cylinder, | - four-stroke engine, Model 1D80 Series
|
- Electric and Propane Models
Available
|
NATIONAL STOCK NUMBERS
|
ELECTRIC POWERED
|
|
|
DIESEL POWERED
|
|
|
|
-
Hydraulic Pump: Rexroth
|
Variable volume, pressure
compensating, piston-type
pump, 290 to 4,000
PSI, 5 GPM.
|
-
Hose Reels: Lincoln
|
Two heavy duty industrial
reels with 40' high pressure
hose.
|
-
Filtration: Cross
|
Heavy duty, spin-on,
10 micron filters with
condition indicator.
|
-
Chassis:
|
Three wheel, 5.70 x 8.00
inch pneumatic tires, and
hand operated rear wheel
parking brakes.
|
Fork lift tubes, tie down rings,
heavy duty towbar with lunette
eye, steerable front wheel.
|
-
Fresh Oil and Waste Oil Reservoirs:
|
Two forty-gallon capacity tanks
with liquid level sight gauge
and ball valve drain. Cannot
cross contaminte.
|
OVERALL DIMENSIONS
|
-
Length: 103 inches
Width: 54 inches
* Height: 50 inches
* Weight: 1400 pounds
|
-
* WITHOUT NITROGEN
-
TANKS OR TOOL BOX
Protected by U.S. Patent
No. 3889904
|
|
